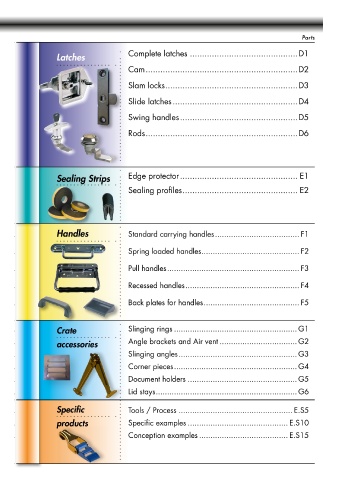

Catalog’s families

Parts Parts

Toggle Latches Rigid toggle latches .............................................. A1 Latches Complete latches ............................................D1

Flexible toggle latches .......................................... A2 Cam ..............................................................D2

Spring loaded toggle latches ................................. A3
Slam locks ......................................................D3
Adjustable toggle latches ...................................... A4
Slide latches ...................................................D4
Rotary toggle latches ............................................ A5

Back plates for toggle latches ................................ A6 Swing handles ................................................D5

Rods ..............................................................D6

Catch plates Catch plates .........................................................B1 Edge protector ................................................ E1

Back plates for catch plates ....................................B2 Sealing Strips
Sealing profiles ............................................... E2

Hinges Continuous hinges ................................................ C1
Handles Standard carrying handles ..................................... F1
Cabinet hinges .................................................... C2
Spring loaded handles ........................................... F2
Square and round hinges ...................................... C3
Pull handles .......................................................... F3
Double leaves hinges ............................................ C4
Recessed handles .................................................. F4
Large cabinet hinges ............................................ C5 Back plates for handles .......................................... F5

Spring loaded hinges ........................................... C6

Crate Slinging rings ...................................................... G1
Limited movement hinges ...................................... C7
accessories Angle brackets and Air vent .................................. G2
Offset hinges ....................................................... C8 Slinging angles .................................................... G3

Corner pieces ...................................................... G4
Concealed hinges ................................................ C9
Document holders ................................................ G5
Lift off hinges ..................................................... C10 Lid stays .............................................................. G6

Miscellaneous hinges .......................................... C11 Specific Tools / Process .................................................. E.S5

products Specific examples ............................................ E.S10
Specific hinges .................................................. C12
Conception examples ....................................... E.S15
Screw on hinges ................................................ C13
